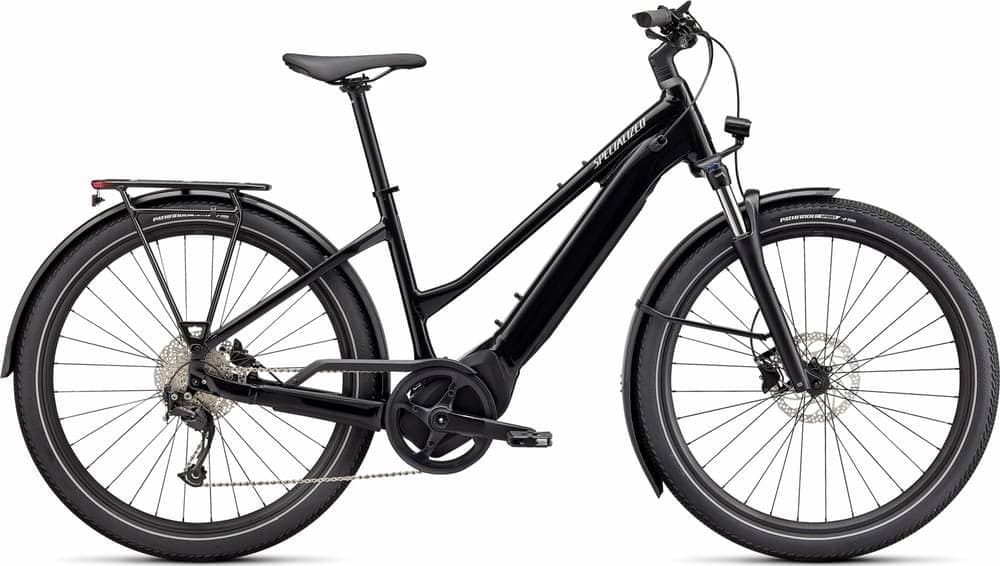

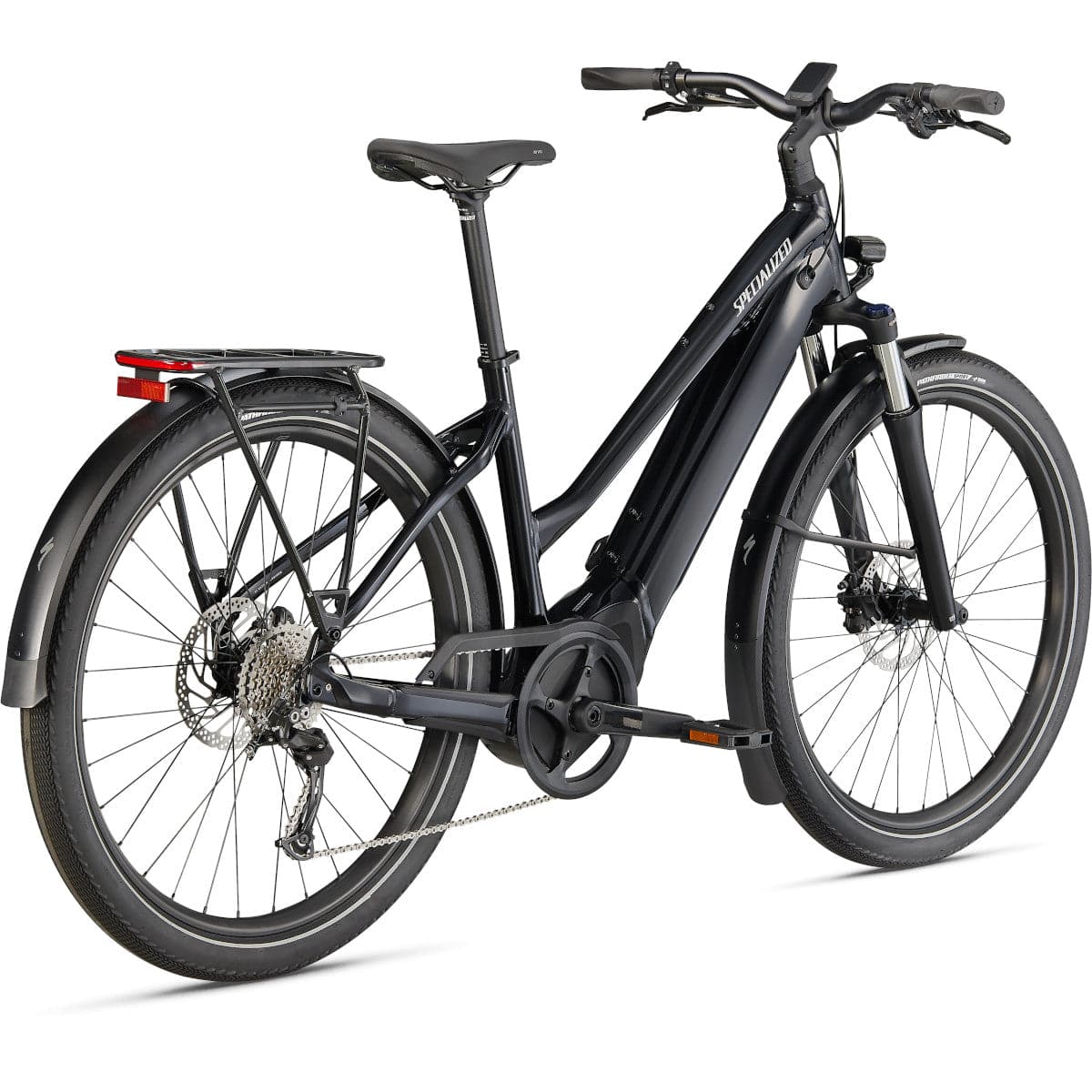

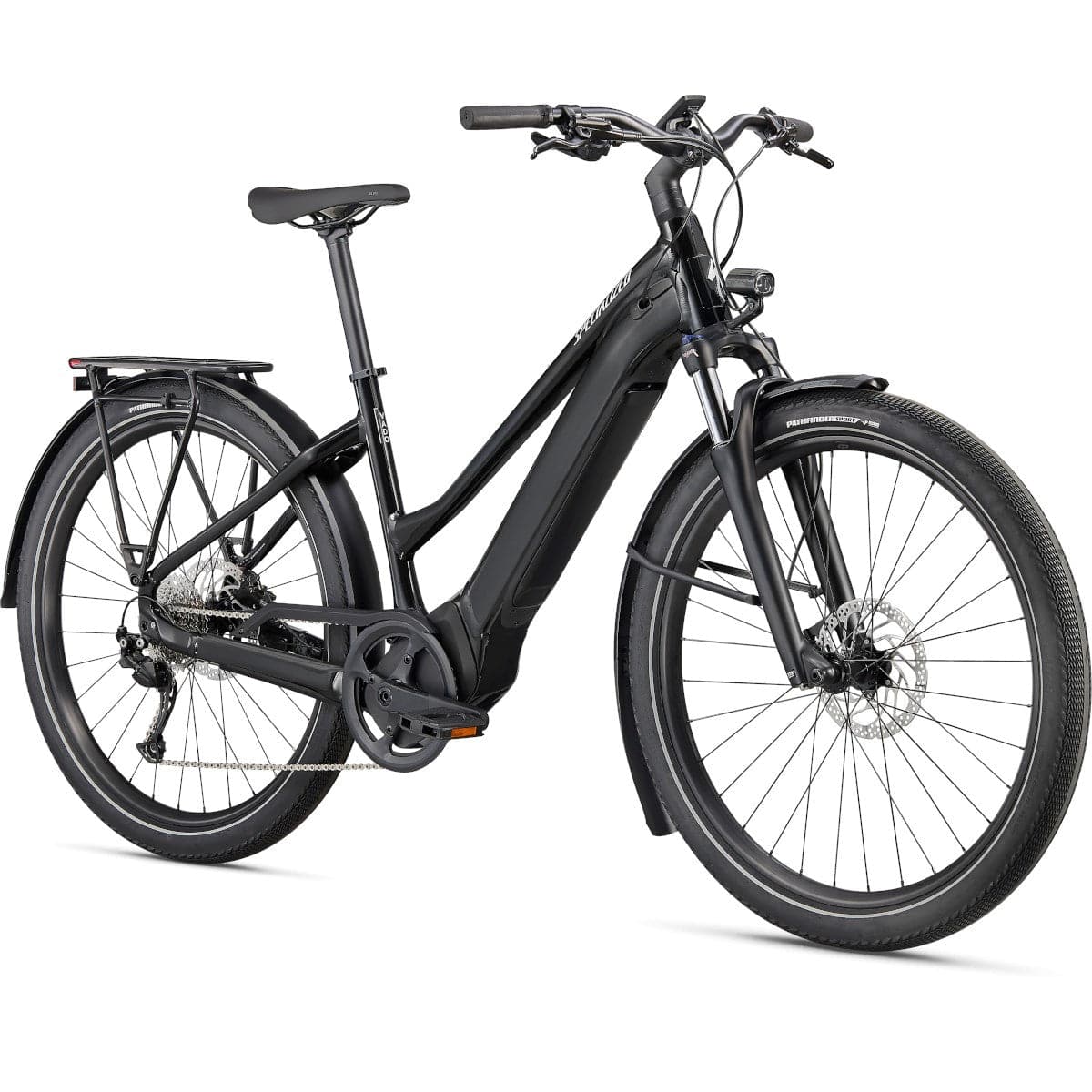

Vado is the vehicle for everything from daily commutes to fast workouts to longer-than-planned adventures—an electric bike for life. The smoothest-riding e-Bike experience yet, Vado is designed to boldly take on the ever-changing landscape you'll encounter as a daily rider, carry whatever you need it to, and keep you riding more often.
Tech Specs:
-
Frame: E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount
-
Fork: SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount
-
Stem: Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
-
Handlebar: Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
-
Saddle: Rivo Sport, steel rails, 155mm
-
Seatpost: Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm
-
Pedals: Specialized Commuter w/ grip tape & reflectors
-
Grips: Specialized Body Geometry Contour, lock-on
Groupset:
-
Rear Derailleur: Shimano Alivio, SGS, 9-speed
-
Crank: Custom alloy forged crankarms, Praxis, 48T, 104BCD
-
Shifters: Shimano Alivio, 9-speed w/ Optical Gear Display
-
Cassette: Shimano CS-HG400, 9-speed, 11-36t
-
Chain: KMC e9T, 9-speed w/ Missing Link™
-
Brakes: Shimano BR-MT200, hydraulic disc, 180mm Centerlock
Wheelset:
-
Rims: 650b disc, double-wall alloy, pinned, 32h
-
Spokes: DT Swiss Industry
-
Front Hub: Shimano MT400, Centerlock, 15x100mm, 32h
-
Rear Hub: Shimano MT400-B, Centerlock, 12x148 Boost, 32h
-
Tires: Front: Pathfinder Sport Reflect, 650Bx2.3, Rear: Pathfinder Sport Reflect, 650Bx2.3
Electric Components:
-
Motor: Specialized 2.0E, 50Nm torque, custom tuned motor, 250W nominal
-
Battery: Specialized U2-530, alloy casing, state of charge display, 530Wh
-
Charger: Custom charger, 42V4A w/ Rosenberger plug, 100-240V
