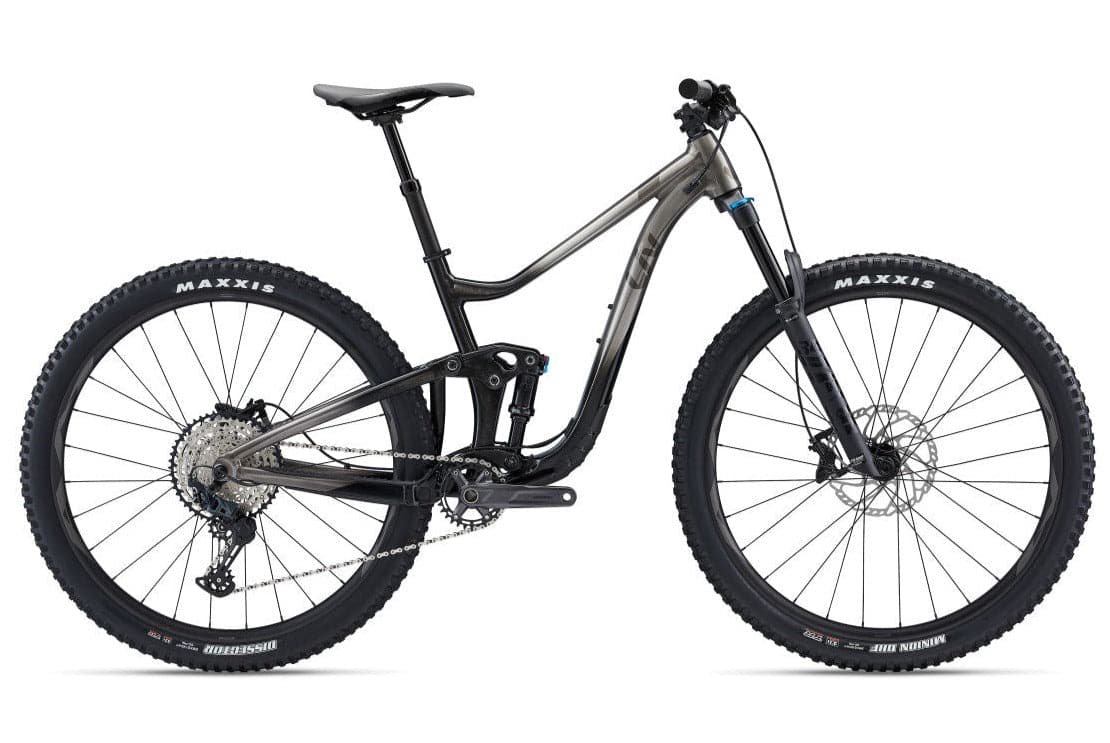

The intrigue 29 mtb bike is built to blast over technical trails, zip over rocks at supersonic speed, and tackle the most technical trails with confidence.
Tech Specs:
-
Frame: ALUXX SL-Grade Aluminum front and rear triangles, 125mm Maestro Suspension, flip chip
-
Fork: Fox 34 Float Performance, 140mm, GRIP damper, Boost, 15x110, Kabolt, tapered, 44mm offset, custom tuned for Liv
-
Rear Shock: Fox Float DPS Performance, 185/50, custom tuned for Liv
-
Bottom Bracket: Shimano, press fit
-
Stem: Giant Contact SL, 35mm S:50mm, M:50mm, L:50mm
-
Handlebar: Giant Contact TR35, alloy, 35mm S:760mm, M:760mm, L:780mm
-
Saddle: Liv Sylvia
-
Seatpost: Giant Contact Switch dropper, remote S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 499mm
-
Grips: Liv Supera, single lock ring
Groupset:
-
Rear Derailleur: Shimano SLX M7100
-
Crank: Shimano M511, 30t S:170mm, M:170mm, L:170mm
-
Shifters: Shimano SLX M7100, 1x12
-
Cassette: Shimano SLX M7100, 10x51
-
Chain: KMC X-12
-
Brakes: Shimano BR-MT520, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
-
Brake Levers: Shimano MT501
Wheelset:
-
Rims: Giant AM 29, tubeless ready, sleeve-joint, 30mm inner width
-
Spokes: Sapim
-
Front Hub: [F] alloy 15x110, sealed bearing [R] alloy 12x148, sealed bearing
-
Rear Hub: [F] alloy 15x110, sealed bearing [R] alloy 12x148, sealed bearing
-
Tires: [F] Maxxis Minion DHF 29x2.5WT, EXO, TR, tubeless [R] Maxxis Dissector 29x2.4WT, EXO, TR, tubeless
